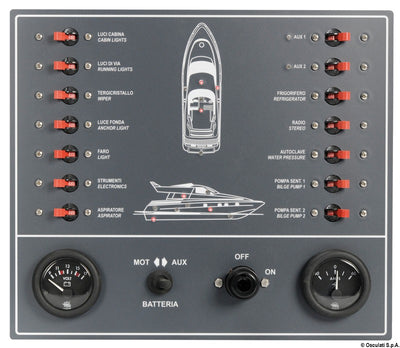

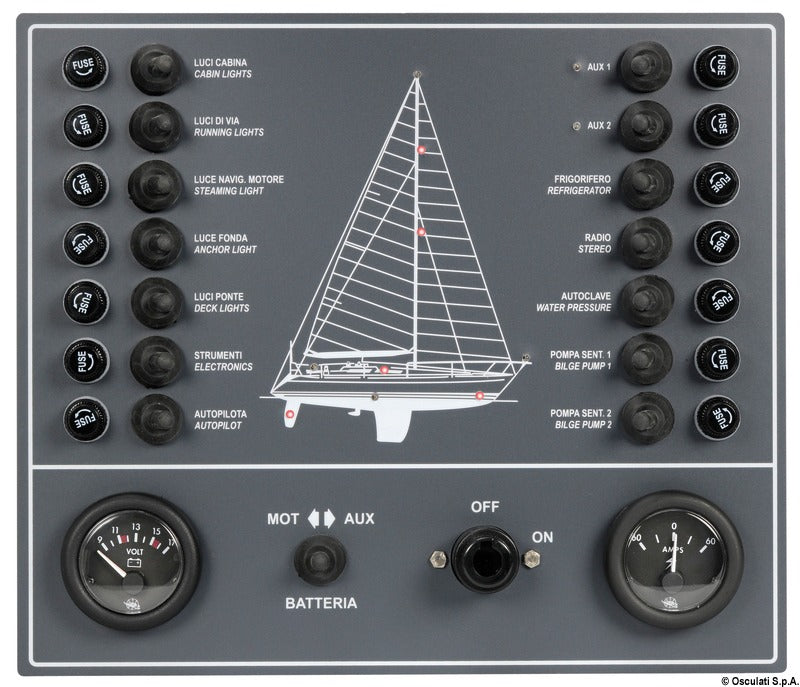

14-switch marine electric control panel — sailboat or powerboat, fuses or auto breakers
€619,00
incl. VAT 25.5%
14-switch marine electric control panel — 327 × 285 mm panel with rocker switches for navigation lights, anchor, bilge pumps, accessories and house circuits. Three versions: sailboat with replaceable fuses, powerboat with automatic thermo-magnetic breakers, sailboat with automatic breakers.
- 14 illuminated switches — each with engraved symbol (nav lights, anchor, horn, pumps, accessories)
- 327 × 285 mm panel — fits standard helm console cutouts
- Fuses (€743) vs Auto breakers (€749-887) — auto breakers reset by switch, fuses need replacement
- Powerboat vs sailboat layouts differ in symbol selection
Why automatic breakers cost more: Reset by flipping the switch — no need to carry spares. Thermo-magnetic protection is more accurate than fuses for sensitive electronics. Standard on modern boats.
Select model3 options
14 switches sailboat — fuses 6×30
€619,00
Powerboat — automatic thermo-magnetic (Airpax)
€749,00
Sailboat — automatic thermo-magnetic (Airpax)
€824,00
Parts that fit
Fits the variant you selected — add to cart in one tap.
In stock
93 % of orders ship within 3 business days
Not sure this fits your boat? Ask us before you order
Free shipping on orders over €100 · Free returns within 14 days
Use cases
New boat helm panel
14 switches covers almost any cruising boat — nav lights, anchor, bilge pumps, horn, blower, instruments, accessories. Single panel install vs scattered switches.
Refit upgrade
Replace old DIY switch panels with a clean, integrated 14-switch unit. Modern Airpax breakers are more reliable than aging glass fuses.
Yacht standard
This panel layout is the marine standard for 27-35 ft cruisers — what surveyors expect to see, what insurance companies recognize.
Specifications
TypeSailboat — fuses (6×30 mm)
Switches15 A
Best forCost-conscious sailboat install
BrandOsculati
Type14-switch marine electric control panel
Dimensions327 × 285 mm
Switch typeIlluminated rocker switches with engraved symbols
VersionsSailboat fuses, sailboat auto-breakers, powerboat auto-breakers
Protection15 A fuses (6×30 mm) OR automatic thermo-magnetic 'Airpax' breakers
Voltage12V/24V compatible
Made inItaly
Country of originItaly
Installation guide
1
Pick sailboat vs powerboat layout
Symbol layout differs — sailboat has masthead lights, anchor, bilge; powerboat has nav lights, horn, blower, etc. Pick the layout matching your boat type.
2
Pick fuses or auto breakers
Fuses (€743): cheaper, need spare fuses on board. Auto breakers (€749-887): reset by flipping switch, no spares needed, slightly faster trip on overload.
3
Cut helm panel
327 × 285 mm rectangular cutout in helm console. Use jigsaw or rotary tool with fine blade.
4
Wire each circuit
Each switch goes to its dedicated circuit (nav lights, anchor, etc.). Use 2.5-4 mm² wire depending on load. Common negative bus on the back of the panel.
5
Test all switches
Power on. Each switch should illuminate when ON. Test each circuit's load operates correctly. Verify breakers trip on overload (if applicable).
