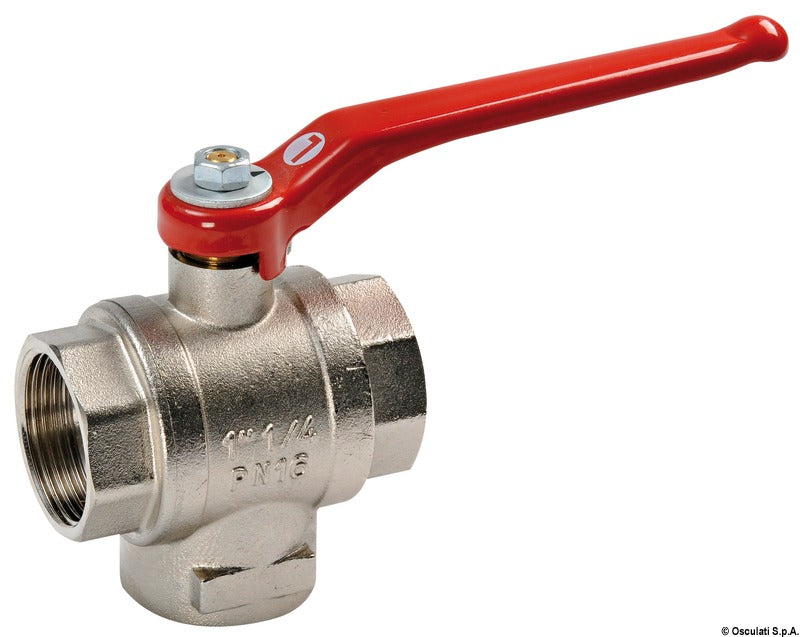

Brass ball valves
€30,90
incl. VAT 25.5%
Discover reliable control with our Brass Ball Valves, designed to deliver dependable performance for your marine and boating water systems.
- Durable nickel-plated brass diverting valve for long-lasting use
- Red coated steel lever for easy and precise control
- Operates efficiently in temperatures ranging from -10°C to +100°C
- Compatible with water systems, gasoline, heating, and non-corrosive fluids
Select model12 options
Ball ball brass 3-way 3/8" L
€30,90
Ball ball brass 3-way 1/2" L
€30,90
Ball ball brass 3-way 3/4" L
€36,90
Ball ball brass 3-way 1" L
€49,90
Ball ball brass 3-way 1"1/4 L
€63,68
Ball ball brass 3-way 1"1/2 L
€93,38
Ball ball brass 3-way 3/8" T
€30,90
Ball ball brass 3-way 1/2" T
€30,90
Ball ball brass 3-way 3/4" T
€36,90
Ball ball brass 3-way 1" T
€49,90
Ball ball brass 3-way 1"1/4 T
€63,68
Ball ball brass 3-way 1"1/2 T
€93,38
Cover for this size
Parts that fit
Fits the variant you selected — add to cart in one tap.
In stock
91 % of orders ship within 3 business days
Free shipping on orders over €100 · Free returns within 14 days
Specifications
Type3-way, deviator
With passageTotal
Operation of aL
Thread3/8"
Model17.229.00-05
Product TypeDiverter Nickeled Brass Ball Valve - L Port
Working Temperature MIN-10°C
Working Temperature MAX+100°C
Max Pressure25 bar
Threaded EndsISO 228/1
Port Configurations1/4", 3/8", 1/2", 3/4", 1", 1"1/4, 1"1/2, 2", 3"
Rotation180°
StandardsCE, ACS, PED 2014/68/EU
Body MaterialEN12420-CW617N-nickeled
Ball MaterialEN12164-CW614N-chromium plated
Seal MaterialP.T.F.E.
Pushrod MaterialEN12164-CW614N
Gasket MaterialP.T.F.E.
O-Ring MaterialFPM (Viton)
Nut MaterialUNI 7356-CB4FFzinkcd
Sleeve MaterialEN12420-CW617N-nickeled
Lever MaterialEN1011-DD13-red painted
Flux IndicatorEN7639-5GALSI 1
Country of originItaly
