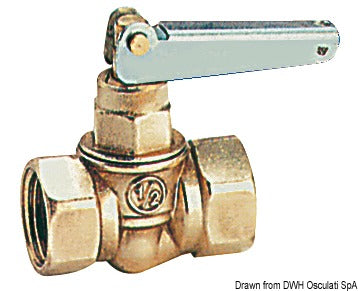

Fuel shut-off valve, fitted with 180° spring swivelling lever
€38,90
incl. VAT 25.5%
Introducing the fuel shut-off valve, equipped with a 180° spring swivelling lever designed for easy and precise control of your marine fuel system.
Select model2 options
Fuel shut-off valve brass 3/8"
€38,90
Fuel shut-off valve brass 1/2"
€45,90
Parts that fit
Fits the variant you selected — add to cart in one tap.
In stock
91 % of orders ship within 3 business days
Free shipping on orders over €100 · Free returns within 14 days
Specifications
Connection from3/8”
ProductN17 Ball Valve
TypeIntercettazione a strapo per impianti a gasolia
Temperature Range-10 to +60 °C
Maximum Operating Pressure6 bar
Compatible FluidsGasoline
Body MaterialBrass CW617N
Seal MaterialNBR
Stem MaterialBrass CW614N
Spring MaterialSteel
Connections Available3/8" and 1/2"
Model 17.400.00 - Connection3/8"
Model 17.400.00 - L (mm)70
Model 17.400.00 - I (mm)25
Model 17.400.00 - H (mm)62
Model 17.400.00 - J (mm)17
Model 17.400.00 - M (mm)100
Model 17.400.01 - Connection1/2"
Model 17.400.01 - L (mm)70
Model 17.400.01 - I (mm)25
Model 17.400.01 - H (mm)61
Model 17.400.01 - J (mm)15
Model 17.400.01 - M (mm)100
Kv Coefficient3.9
Country of originItaly
