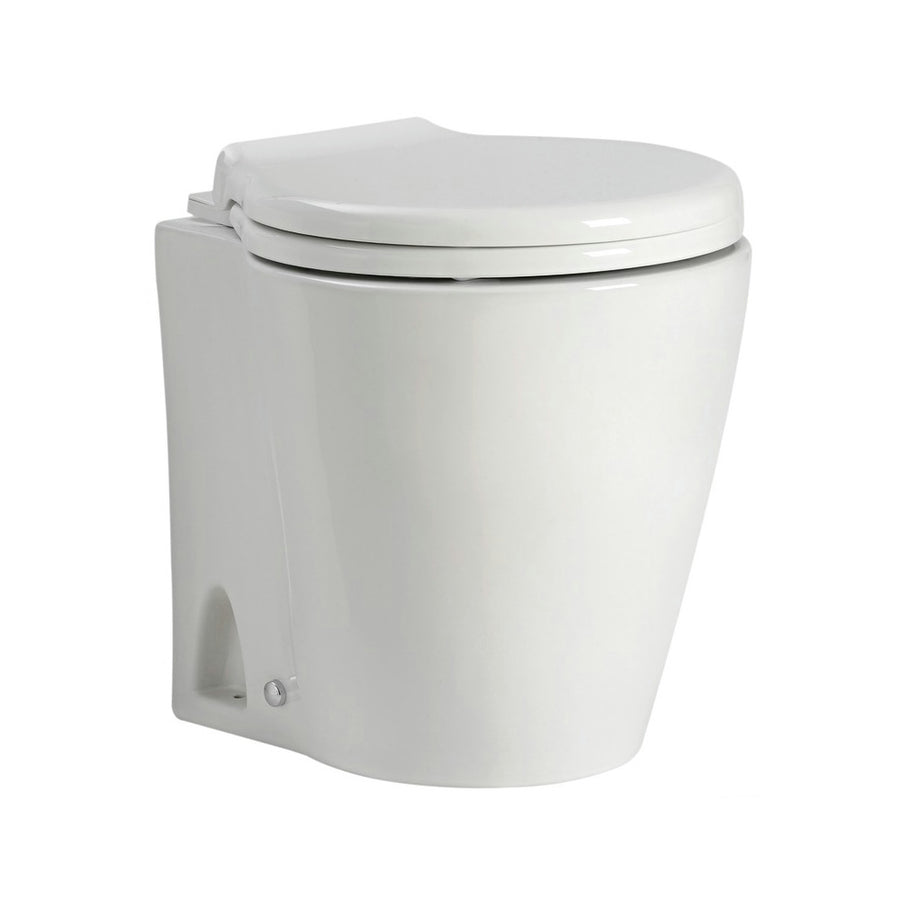

Laguna Slim Electric Toilet

€539,00

incl. VAT 25.5%

Discover the Laguna Slim Electric Toilet, a premium marine sanitation solution designed for seamless performance and durability on board.

High-quality ceramic bowl paired with a soft-close plastic seat for comfort and longevity
Reliable permanent-magnet motors with stainless steel shaft ensure smooth operation
Equipped with a 19-mm (3/4") inlet pipe and options for 25-mm (1") or 38-mm (1" 1/2) outlet pipes
Version includes a built-in suction pump combined with a centrifugal grinder for efficient waste management
Control panel included for easy and precise operation
Spray nozzle fitting provides fast, high-pressure washing of the entire toilet bowl for superior hygiene

Select model2 options

12V

€539,00

24V

€544,00

In stock

91 % of orders ship within 3 business days

Not sure this fits your boat? Ask us before you order

Does this fit your boat?

Free shipping on orders over €100 · Free returns within 14 days

Use cases

Primary head

Electric toilet for the main head — quiet macerator, ceramic or porcelain bowl and one-touch flush make it suitable for daily use on cruising and liveaboard boats.

Charter and yacht upgrade

Replaces older manual heads on charter boats and yachts with a modern, easy-to-operate unit that reduces guest support requests.

Refit projects

Standard footprint matches most existing installations. Available in 12V and 24V to match your boat's electrical system.

Specifications

Voltage12 V

Current draw (peak)24 A

Unit weight16 kg

Shipping weight19.5 kg

Package volume90.0 L

BowlCeramic

SeatSoft-close plastic

PumpPermanent-magnet motor with stainless steel shaft, built-in macerator

Suction inlet19 mm (3/4″)

Discharge outlet25 mm (1″) or 38 mm (1″½)

Noise level (typical)≈ 85 dB

Dimensions (H×W×D)410 × 340 × 405 mm

Net weight16 kg

Made inItaly

Compatible control panels50.207.07 — Universal control panel · 50.207.09 — FLUSH switch

Country of originItaly

Installation guide

Verify voltage and circuit

Match the toilet's supply voltage (12V or 24V) to your boat's electrical system. Provide a dedicated circuit with an appropriately sized fuse and wire run from the battery.

Plan inlet and discharge plumbing

Connect the seawater inlet to a seacock with vented loop above the heeled waterline. Route the discharge hose to a holding tank or — where permitted — through a Y-valve to a thru-hull, also via a vented loop.

Position and secure the bowl

Place the toilet on a level surface, mark the four mounting holes, drill pilot holes and bolt the base down with the supplied stainless hardware. Bed each fastener in marine sealant.

Connect hoses with double clamps

Use sanitation-grade hose with two stainless hose clamps at every fitting. Avoid sags where odour-causing waste can collect.

Wire and test

Wire the control panel between battery and toilet (positive, negative, flush switch). Open the seacock, switch on the breaker, and run a complete flush cycle. Check every connection for leaks before commissioning.
