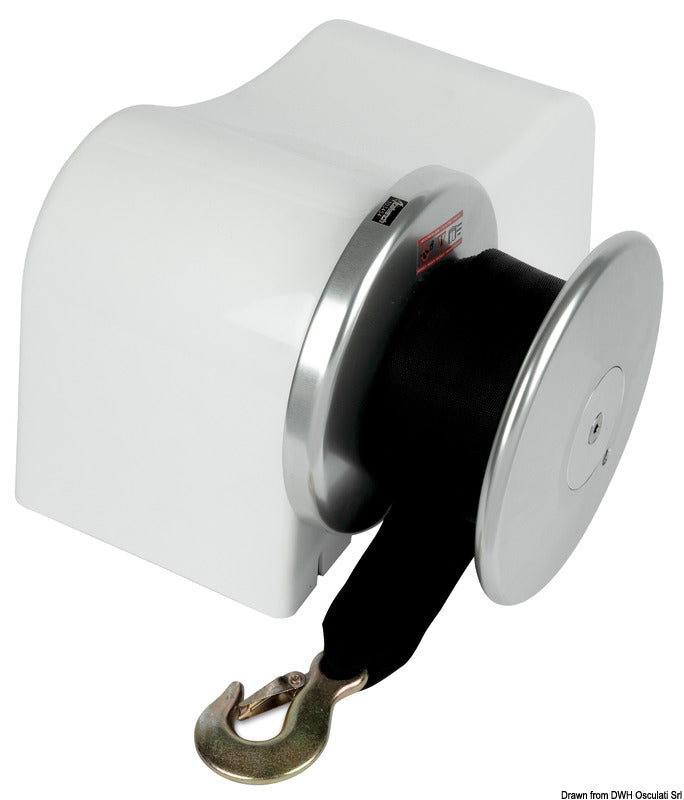

ACHILL TENDER LIFT capstan for tenders
€744,00
incl. VAT 25.5%
Introducing the ACHILL TENDER LIFT capstan, designed to provide reliable and efficient lifting solutions for tenders on your vessel.
Flexible Mounting Options for Seamless Integration
- Capable of both vertical and horizontal mounting to suit your installation needs
Select model3 options
Achill Tender capstan 500 W
12 V
€744,00
Achill Tender capstan 500 W
24 V
€769,00
Capstan for ITALWINCH Achill Tender 1000W 24V
€1.669,00
Parts that fit
Fits the variant you selected — add to cart in one tap.
In stock
91 % of orders ship within 3 business days
Not sure this fits your boat? Ask us before you order
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over €100 · Free returns within 14 days
Specifications
Motor - W500
Motor - V12
Max instant pull650
Load capacity for lifting kg90
Absorption at workload60
Max line speed m/min12
Max. length of strap m7,5
Weight (kg)8,5
Optional Strap[02.090.01] [02.090.02]
misure mm - A360
misure mm - B165
misure mm - C195
misure mm - D150
misure mm - E40
ModelACHILL
Voltage Options12VDC / 24VDC
Motor Power500 W
Maximum Instant Load650 kg (12VDC) / 660 kg (24VDC)
Working Load90 kg
Current Absorption60 Amp (12VDC) / 32 Amp (24VDC)
Work Load Recovery Speed23 m/min
Maximum Chain Length7 m
Motor Cable Section (up to 5m)25mm² - 3 AWG (12VDC) / 16mm² - 5 AWG (24VDC)
Motor Cable Section (up to 10m)35mm² - 2 AWG (12VDC) / 16mm² - 5 AWG (24VDC)
Protection Switch50 Amp (12VDC) / 40 Amp (24VDC)
Deck Pressuremin 18mm / Max 30mm
Total Weight8.5 kg
Deck Thickness Range18 mm - 30 mm
Dimensions Base34.0 × 170 mm
Dimensions Vertical200 × 64.0 mm
Country of originItaly
