Fuse holder box with warning lights
€19,95
incl. VAT 25.5%
The Osculati Fuse Holder Box with Warning Lights is a blade fuse distribution unit with a transparent PC cover, PBT housing, and integrated LED indicators per circuit, rated up to 32 VDC. It allows immediate visual detection of a blown fuse without requiring a multimeter or circuit testing.
Select model3 options
4 housings
€19,95
6 housings
€22,95
10 housings
€17,45
In stock
91 % of orders ship within 3 business days
Free shipping on orders over €100 · Free returns within 14 days
Specifications
Fuse holders4
LED alarm4
misure mm - A47
Voltage32 VDC
Input Terminal Rating#10-32 threaded studs (100A max.)
Output Terminal Rating30A max. per circuit
Input Wire Size#4-6 AWG
Output Wire Size#12-16 AWG
Torque Rating20 in-lb (2.25 Nm) max.
Mounting Torque Rating8 in-lb (0.9 Nm) max.
Temperature Rating-20°C to 85°C
Fuse SpecificationsFor Blade Fuses Used Only
Cover MaterialPC (Transparent)
Housing and Base MaterialPBT (Black)
Push Button MaterialPOM (White)
Terminal MaterialTin plating Copper

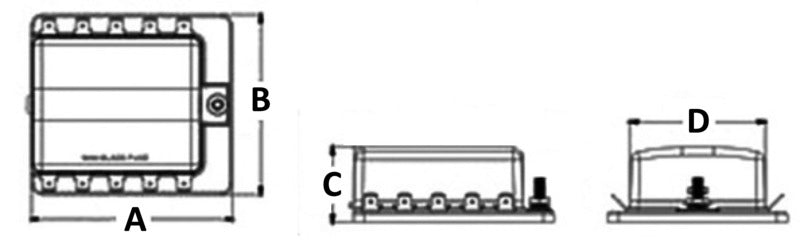

Dimensions Length85.0 ± 1.0 mm
Dimensions Width64.0 ± 1.0 mm
Dimensions Height49.0 ± 2.0 mm
Terminal Dimension6.340 ± 1.0 mm
Mounting Holes2 holes
Blade Fuse Dimension19.1 ± 0.5 mm × 14.6 ± 0.5 mm
Resistance per Resistor2.2 kΩ
Country of originIndonesia
