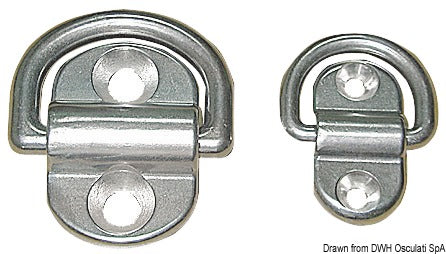

Folding pad-eye and plate, two bores
€16,90
incl. VAT 25.5%
Discover the durability and versatility of our Folding Pad-Eye and Plate with two bores, designed for reliable performance in demanding marine environments.
- Constructed from high strength polished stainless steel (17-PH4) for exceptional corrosion resistance
- Folding design for compact storage and ease of use
- Equipped with two bores for secure attachment and versatility
Select model2 options
28x54 mm
€16,90
45x66 mm
€29,38
In stock
91 % of orders ship within 3 business days
Free shipping on orders over €100 · Free returns within 14 days
Specifications
Base mm28x54
Ø ring section mm6,8
Breaking load kg1500
ProductFolding Pad Eye 7mm 2 Holes
Dimensions54.0 × 36.0 × 28.0 mm
Hole DiameterØ6.4 mm
Sink DiameterØ13.0 mm
Sink Angle90°
FastenerScrew M6, 2 pieces
Corner RadiusR14.0 mm
Function Load800 kg
Break Load1500 kg
Material Base316 Stainless Steel
Material Hinge316 Stainless Steel
Material PlateNBR 50°
FinishVibration Finish
Tolerance±0 / ±0.X / ±0.XX / ±0.XXX / Angulars ±1°
Country of originThailand
