High-flow axial blower

€184,50

incl. VAT 25.5%

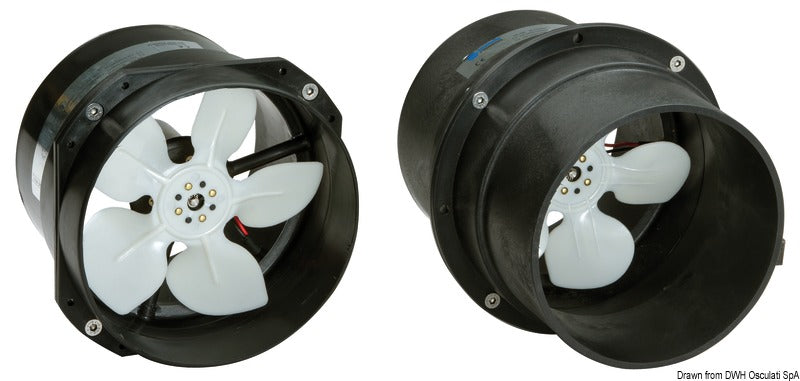

The Osculati high-flow axial inline blower is constructed from durable technopolymer and connects via a 178 mm hose diameter, certified to ISO 8846 for marine use. It delivers 750 m³/h airflow at 30 mm H₂O static pressure, available in 12 V and 24 V variants for large-vessel engine room ventilation.

Select model4 options

Axial fan 12 V 7 A

€184,50

Axial fan 24 V 4 A

€265,95

Axial fan 12 V 6 A

€260,95

Axial fan 24 V 3 A

€265,95

In stock

90 % of orders ship within 3 business days

Does this fit your boat?

Free shipping on orders over €100 · Free returns within 14 days

Specifications

Product TypeInline Blower

CertificationISO 8846-Direction CE94/25N 3016808

Hose Diameter178 mm

Models[{'Part Number': '16.108.01', 'Voltage': '12 V', 'Current': '5 A', 'Static Pressure': '30 mm H2O', 'Flow': '750 mc/h', 'Hose': '178 mm', 'Dimensions': '220×250 mm'}, {'Part Number': '16.108.02', 'Voltage': '24 V', 'Current': '3 A', 'Static Pressure': '30 mm H2O', 'Flow': '750 mc/h', 'Hose': '178 mm', 'Dimensions': '220×250 mm'}, {'Part Number': '16.108.11', 'Voltage': '12 V', 'Current': '6 A', 'Static Pressure': '30 mm H2O', 'Flow': '750 mc/h', 'Hose': '178 mm', 'Dimensions': '220×160 mm'}, {'Part Number': '16.108.12', 'Voltage': '24 V', 'Current': '3 A', 'Static Pressure': '30 mm H2O', 'Flow': '750 mc/h', 'Hose': '178 mm', 'Dimensions': '220×160 mm'}]

Wire Gauge 12V2 mm

Wire Gauge 24V1.5 mm

Fuse Size7 Amp

Max Wiring Length25 feet (7.6 m)

Country of originItaly

Documents
