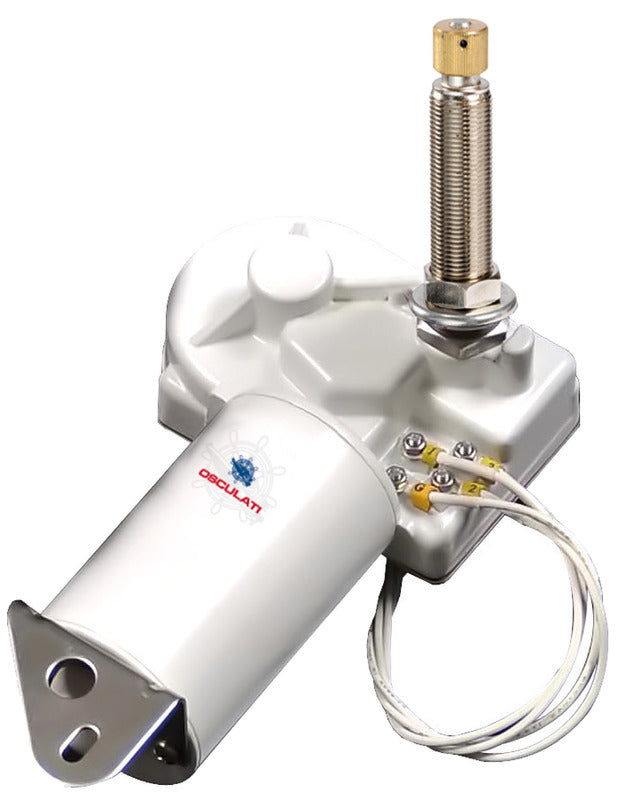

Motor series 20 W for arms and brushes max 550 mm splined shaft with flanges
€164,95
incl. VAT 25.5%
This 20 W wiper motor is built with a stainless steel splined output shaft and flanges, designed to drive wiper arms and brushes up to 550 mm on 12 V or 24 V DC marine electrical systems. The flanged splined shaft provides a more secure mechanical connection compared to smooth-shaft alternatives, reducing slip under load.
Select model3 options
51 mm
19.182.01
€164,95
51 mm
19.182.02
€98,90
25 mm
€98,90
Parts that fit
Fits the variant you selected — add to cart in one tap.
In stock
91 % of orders ship within 3 business days
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over €100 · Free returns within 14 days
Specifications
V12
L mm51
Rated voltage12V / 24V
Test voltage13.5V / 27V
Wiping speed30-45±5~45±5rpm
No-load current H-speed≤20 A
No-load current H-speed Capped≤1 A
No-load current H-speed H-speed≤15 A
Rated torque3.43Nm (L-speed)
Brake torque≥12Nm (L-speed)
Noise≤55dB(A)
Wire length300mm
Output shaft materialstainless steel
Shaft housing materialbrass (nickel plated)
Overall length195.5mm
Overall width162mm
Overall depth100.5mm
Motor length85.5mm
Motor width85mm
Straight knurlingm=0.3 Z=72
Osculation Model length options50mm / 25mm
Circuit diagram length53.5mm
Country of originChina
