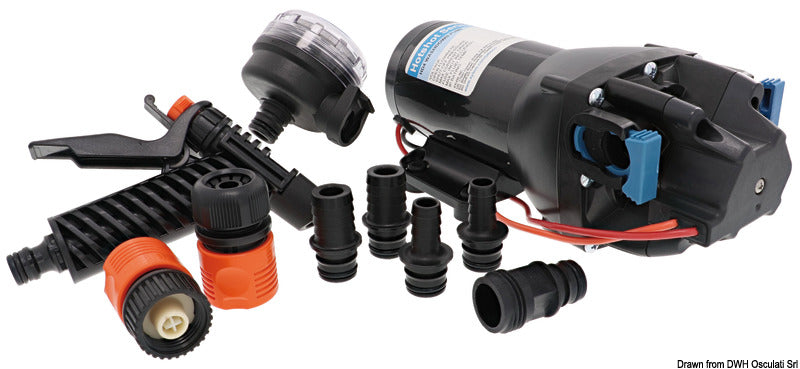

JABSCO Washdown Par-Max 6 Plus pump kit
€646,95
incl. VAT 25.5%
The Jabsco Par-Max HD6 Washdown Pump Kit (model P601J-219N-3A) is a 12V DC, 5-chamber diaphragm pump with a fiber-reinforced polypropylene upper housing and cast aluminium lower housing. It delivers 6 GPM at open flow and up to 70 PSI operating pressure for powerful onboard washdown tasks.
Select model2 options
JABSCO Washdown HotShot pump kit 6HD 12V 70psi
€646,95
JABSCO Washdown HotShot pump kit 6HD 24V 70psi
€509,00
In stock
91 % of orders ship within 3 business days
Not sure this fits your boat? Ask us before you order
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over €100 · Free returns within 14 days
Specifications
V12
Maximum Consumption A20
Fuse A25
ModelP601J‐219N‐3A
Pump UnitHOTSHOT HD6 12V 6GPM 70PSI
Port Fittings2 x 3/4" (19mm) Straight Hosebarb
Strainer90 Degree Quick Connect; 40 mesh
Trigger NozzleIncluded, Quick Connect
HosecoilNot Included
IOMIncluded (PN 81000475)
Carton Type4 Color Aftermarket
Master Pack Qty4
NotesInches [mm]
Part NumberP601J‐219N‐3A Upper Housing*: Fiber reinforced polypropylene
Aftermarket replacementP601J‐219N‐3A Lower Housing: Cast Aluminum
Replaces82605‐0092 Check Valve Retainer*: Polypropylene
ApplicationMarine Washdown Switch diaphragm*: EPDM
Design5 Chamber Diaphragm Bypass Diaphragm*: N/A
Noise Dampening Baseplate BaseplatePlastic w/rubber feet
Open Flowrate6 GPM open flow (22.7 LPM) Nominal Voltage: 12 VDC
Max Operating Pressure70 PSI (4.8 BAR) Max Current Draw: 19 Amps @ 70 PSI (4.8 BAR)
Max Inlet Pressure30 PSI (2.1 BAR) Fuse Size: 25 Amps (not included)
Internal BypassNone Duty Cycle: Intermittent (See heat‐rise chart)
Fluid Temperature Range32F ‐ 140F (0C ‐ 60C) Leads: 12" (305mm), 14 AWG (2.5mm^2)
RCMYes Ambient Temp Range: 32F ‐ 140F (0C ‐ 60C)
Country of OriginChina Carton Dimensions: 17.5x8x5.5" (445x203x140mm)
HTS Code8413.50.0050 Pump Weight: 7 lbs (3.2 kg)
UPC Code671880842006
Country of originChina
