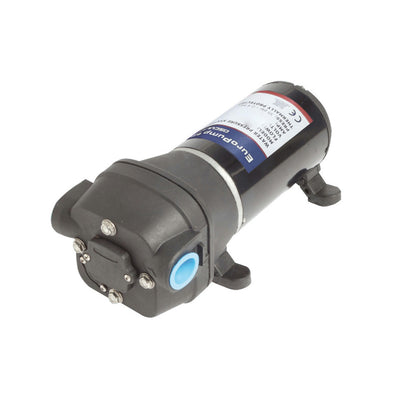

SuperFlow smart autoclave with 5 valves

€159,50

incl. VAT 25.5%

The SuperFlow smart autoclave is a variable-speed 5-chamber diaphragm pump available in 12 V and 24 V configurations, designed to supply up to four onboard fixtures simultaneously. An integrated electronic speed controller adjusts motor output to match actual demand, eliminating flow pulsation and reducing energy consumption.

Select model2 options

12 V

€159,50

24 V

€159,50

In stock

91 % of orders ship within 3 business days

Free shipping on orders over €100 · Free returns within 14 days

Use cases

Multi-fixture freshwater

Supplies up to 4 onboard taps simultaneously — galley sink, shower, washroom basin and head — without flow pulsation. Ideal for cruising boats with multiple users.

Quiet liveaboard operation

Variable-speed motor runs only as hard as needed. Significantly quieter than fixed-speed pressure pumps — important when running water at night in a sleeping cabin.

Pressure pump retrofit

Drop-in replacement for older fixed-speed pressure pumps. Eliminates pulsation, reduces energy use and removes need for accumulator tank in most installations.

Specifications

Voltage12 V

Current draw10 A

EAN8033137219177

Shipping weight3.28 kg

Package volume5.8 L

Pump type5-chamber variable-speed diaphragm pump (autoclave)

BrandEUROPUMP — Osculati

Flow rate18.9 l/min

Max pressure70 PSI / 4.8 bar

Dimensions226 × 128 × 142 mm

Net weight3.3 kg

Hose connections3/4″ (19 mm) straight + 90° elbow connectors · 1/2″ threaded fitting · 3/4″ filter with quick connect

IncludesPump unit + all four hose connectors + inline filter with quick-connect

OperationVariable-speed: electronic controller matches output to demand — no pulsation, low energy use, very quiet

Dry-run protectionYes — pump can run dry without damage

Max fixtures suppliedUp to 4 onboard fixtures simultaneously

Made inChina

Country of originChina

Installation guide

Choose dry, vented location

Mount the pump in a dry, ventilated locker close to the freshwater tank to minimise suction lift. Allow access for periodic filter cleaning.

Select hose fittings

Use 3/4″ (19 mm) hose for inlet and outlet. The kit includes a straight connector, a 90° elbow, a 1/2″ threaded fitting and an inline filter with quick-connect — choose the combination that fits your routing.

Install inline filter on suction side

Always fit the included filter on the inlet (suction) side, between the tank and the pump. This protects diaphragms and valves from debris and tank sediment.

Wire the pump

Run a dedicated DC circuit from the battery: 12V pump (16.515.12) draws up to 10 A — fuse at 15 A; 24V pump (16.515.24) draws up to 5.5 A — fuse at 10 A. Connect through an accessible switch.

Prime and test

Open one fixture, then switch the pump on. The variable-speed controller adjusts automatically — no manual pressure switch tuning. Verify quiet operation, leak-tight fittings, and consistent flow at all fixtures.
