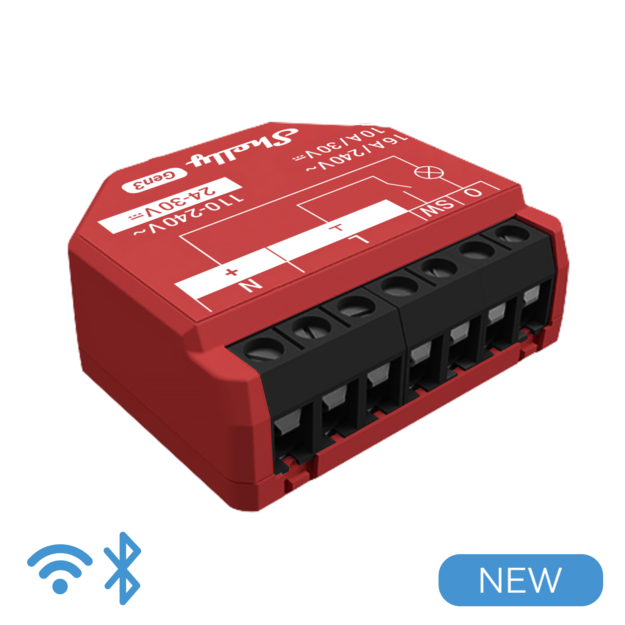

Shelly 1PM Gen3 relay, 1 channel with power metering, 24 V DC & 230 V
€15,85
incl. VAT 25.5%
16 A relay24 V DC / 230 V ACPower meteringNo hub needed
- Switches a single 24 V DC or 110-240 V AC circuit rated up to 16 A.
- Measures voltage, current and power consumption in real time.
- Includes overcurrent, overvoltage and overpower protection.
- Connects via Wi-Fi and Bluetooth without any vendor hub.
- Can be extended with the Shelly Plus Add-on for temperature, humidity or analog sensors.
The Shelly 1PM Gen3 is a single-channel relay with power metering, suited to switching a 24 V DC boat circuit or a 110-240 V AC shore-power load, such as a cabin heater, pump or socket, while reporting voltage, current and consumption in watts. It connects over Wi-Fi and Bluetooth and needs no vendor hub, working with any boat network or with Schooner OS. Overcurrent, overvoltage and overpower protection guard the circuit through unattended winter lay-up.
- Single-channel relay rated 16 A, powered by 24 V DC or 110-240 V AC.
- Power metering reports voltage, current and watts consumed.
- Overcurrent, overvoltage and overpower protection built in.
- Wi-Fi and Bluetooth control, no hub required, extendable with Shelly Plus Add-on for sensors.
In stock
91 % of orders ship within 4 business days
Free shipping on orders over €100 · Free returns within 14 days
Use cases
Shore power metering
Monitor voltage, current and consumption on a 230 V shore-power circuit at the berth.
Cabin heater control
Switch and monitor a cabin heater load remotely while the boat sits unheated over winter.
24 V DC circuit switching
Control a 24 V DC boat circuit and track its power draw from anywhere with mobile data.
Specifications
Country of originBulgaria
