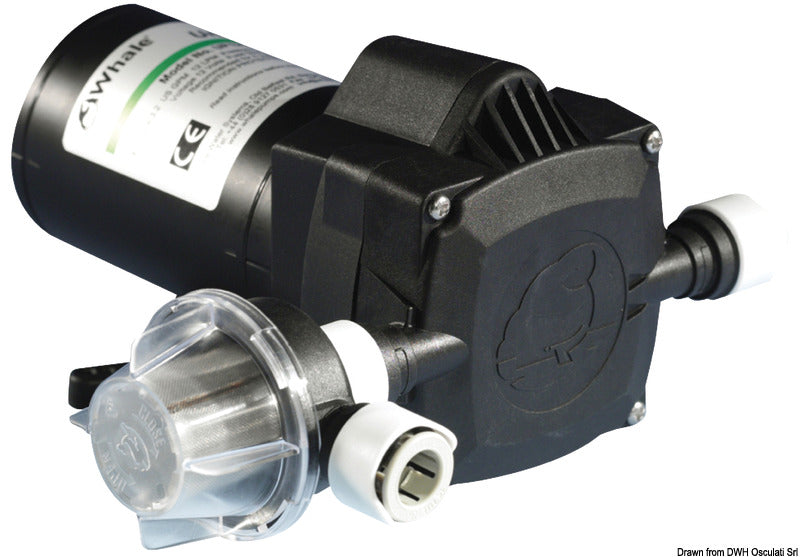

Whale Universal fresh water pump
€159,50
incl. VAT 25.5%
Whale Universal diaphragm pump for marine pressure water systems. Quiet, constant flow, 3 bar shut-off pressure. Built in the UK to last in saltwater.
- 4 models: 8 / 12 / 18 L/min — pick by boat size (≈6 L/min per tap)
- 12 V (3 models) or 24 V (18 L/min only)
- Self-primes 3 m, run-dry safe (unlike impeller pumps)
- 15 mm quick-fit inlet, 15 mm or 3/4" thread outlet
Match the flow rate to the number of taps you run simultaneously — see flow / voltage details and recommended outlets in the tech specs below.
Select model4 options
8 l/min / 12 V
€159,50
12 l/min / 12 V
€230,95
18 l/min / 12 V
€293,95
18 l/min / 24 V
€293,95
In stock
94 % of orders ship within 4 business days
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over 100€ · Free returns within 14 days
Use cases
Whole-boat fresh water pressure system
Replaces the campground feel of a hand pump with home-style pressure water. Run two taps simultaneously, take a shower while someone is washing dishes — pick the flow rate that matches your boat's tap count.
Replacement for tired pumps
Diaphragm pumps wear over time — symptoms are short-cycling, weak flow, or constant running. Universal is a drop-in replacement for most existing Whale, Shurflo, or Jabsco pumps using 15 mm quick-fit plumbing.
24 V installation
For boats with 24 V house banks (large yachts, commercial work boats), the 18 l/min 24 V version draws only 8 A — gentler on the batteries and uses smaller-gauge wire than the 12 V high-flow version.
Specifications
Flow8 l/min
Voltage12 V
Current draw5 A
Recommended outlets2 (e.g. galley + 1 tap)
Outlet thread15 mm quick-fit
Net weight2.4 kg
BrandWhale
SeriesUniversal Fresh Water
Pump typeDiaphragm with built-in pressure switch
Shut-off pressure3 bar (45 PSI)
Self-prime heightUp to 3 m
Inlet15 mm quick-fit (all models)
Outlet15 mm quick-fit (8 & 12 l/min) | 3/4" male thread (18 l/min)
Voltage12 V (3 models) or 24 V (18 l/min only)
Run drySafe — diaphragm tolerates dry running
Made inUnited Kingdom
Country of originUnited Kingdom
Installation guide
1
Pick the mounting location
Mount above the waterline, near (but not in) the accumulator tank. Pump can be mounted in any orientation — vertical, horizontal, or upside-down. Allow 100 mm clearance around all sides for vibration and access.
2
Plumb the inlet
Run 15 mm reinforced hose from the water tank to the pump's inlet (15 mm quick-fit). Install a strainer between tank and pump — keeps grit out of the diaphragm. Self-priming up to 3 m head — but lower is better.
3
Plumb the outlet
8 l/min and 12 l/min: 15 mm quick-fit to the cold manifold or accumulator. 18 l/min models: 3/4" male thread — use a 3/4" BSP-to-15 mm hose adapter for standard marine plumbing. Always include an accumulator after the pump to dampen pressure pulses.
4
Wire to the house battery
12 V models: 2.5 mm² wire minimum, 15 A fuse close to the battery, switch on the positive line. 24 V model: 1.5 mm² minimum, 10 A fuse. Run the negative directly to the battery negative or main negative bus — not the engine block.
5
Prime and test
Open every tap on the boat. Switch on the pump — it will run continuously until the highest tap delivers water. Close taps one by one. Pump should shut off within 2–3 seconds of the last tap closing, and stay off (no cycling) for at least 10 minutes.
