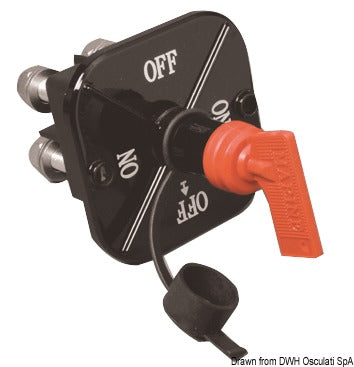

Bipolar battery switch
€60,50
incl. VAT 25.5%
Made in Taiwan
Ensure reliable battery isolation on your boat with our Bipolar Battery Switch, specially designed for vessels with metal hulls.
- Equipped with 4 rear contacts for secure and efficient connectivity
- Removable key for added control and safety
- Silver-plated copper contacts to enhance conductivity and resist corrosion
- Essential bipolar battery isolator for protecting electrical systems on metal-hulled boats
Limited stock — order soon
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Max capacity A - intermittent for 3 sec. | 2000 |
| Max capacity A - in continuous | 120 |
| Base mm | 90x90 |
| Recess mm | 55x55 |
| Recess-fit overhang mm | 55 |
| Pins mm | 10 |
| Max Voltage Range | 48 VDC |
| Duty Continuous Rating | 300 Amps |
| Intermittent Rating | 1,000 Amps / 10 seconds |
| Operating Temperature Range | -40°C to 85°C |
| Advised Wire Size Max | 50 sq. mm |
| IP Standard | Meet IP65 requirement |
| Front Panel Width | 90.7 mm |
| Front Panel Height | 76.2 mm |
| Mounting Depth | 37.3 mm |
| Shaft Diameter | 7.7 mm |
| Connector Diameter | 20 mm |
