SCM elliptical portlight
€521,95
incl. VAT 25.5%
Made in Italy

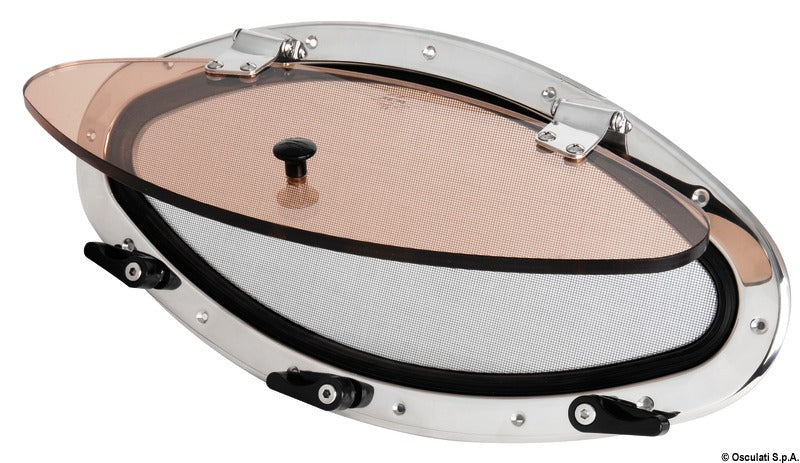

The SCM LEGGERA elliptical portlight is an AISI 316L stainless steel marine porthole with a high-polished finish, featuring a 10 mm PMMA shutter and EPDM seal, sized at 508 × 241.5 mm overall for vessels up to 24 metres. It provides ventilation and natural light to cabins while meeting the structural and weathering demands of offshore and coastal marine use.
Limited stock — order soon
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Outside mm | 510x250 |
| Cut size mm | 460x200 |
| Net light mm | 420x160 |
| Hull thickness mm | 20/25 |
| CE certification - Area | (2) |
| CE certification - Category | 1 |
| Product Type | Porthole Elliptical Light |
| Model | 160x420 |
| Series | LEGGERA |
| Use | Boats and ships within 24 meters |
| Overall Length | 508 mm |
| Overall Height | 241.5 mm |
| Frame Width | 422 mm |
| Frame Height | 161.5 mm |
| With Two Levers Weight | 2 L |
| With Three Levers Weight | 3 L |
| Theoretic Weight | 1.9 kg |
| Base Thickness | 1.5 mm |
| Shutter Thickness | 10 mm |
| Weft Thread | 0.22 Nr 18 (F.I.) mm 0.3 |
| Base Material | AISI 316 L |
| Shutter Material | PMMA |
| Seal Material | EPDM |
| Knob Material | PA |
| Lever Screw Material | AISI 316 |
| M8 Nut Material | AISI 304 |
| Lever Material | PA |
| Adjustable Friction Material | POM/AISI 304 |
| Base Finishing | Hi-polished |
| Shutter Finishing | See code |
| Seal Finishing | — |
| Knob Finishing | — |
| Lever Screw Finishing | Hi-polished |
| M8 Nut Finishing | Hi-polished |
| Adjustable Friction Finishing | /Hi-polished |
