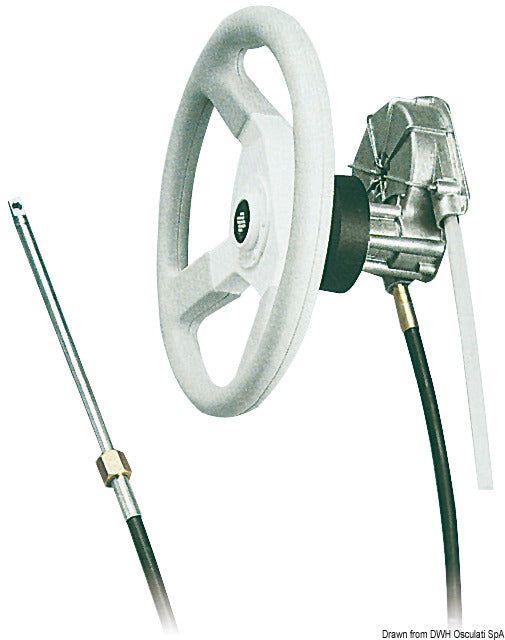

T 85 rotary steering helm — 9–10 m boats (cable sold separately)
€99,95
incl. VAT 25.5%
T 85 rotary steering helm — the helm unit (steering wheel base, gearbox) for boats 9–10 m with outboard, inboard or SX-drive engines. Smooth, precise rotary action up to 50 MPH.
- 3-cycle steering — full lock takes 3 wheel turns
- Min. curve radius 200 mm — fits tight helm console installs
- 228 mm cable stroke — pairs with standard M66 marine steering cables
- Compatible with most outboard, inboard and Volvo SX/OMC Cobra drives up to 50 MPH
Steering cable sold separately — order an M66-class cable matched to your boat's helm-to-engine distance. Engine end fittings vary by engine make — match before ordering.
In stock
95 % of orders ship within 4 business days
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over 100€ · Free returns within 14 days
Use cases
New boat helm install
T 85 is the standard helm for 9-10 m runabouts and walk-arounds — compatible with most engine types via the M66 cable. Drop in for a new helm position or replacement of older steering.
Replacement for worn rotary
Old rotary helms develop slop and sticking. T 85 is a direct replacement for most older 3-cycle rotary helms — same cutout, same cable connection.
Helm console refit
Building a new console? T 85 is the rotary standard. Pair with throttle controls, instrument panel and chartplotter for a complete helm setup.
Specifications
Cable M 6645.185.xx *; 45.186.xx *
BrandOsculati
TypeRotary steering helm (helm only)
Max boat size9–10 m
Max speed50 MPH
Steering cycles3 (full lock = 3 turns)
Min. curve radius200 mm
Cable stroke228 mm
Cable typeM66 marine steering cable (sold separately)
Compatible withOutboard, inboard, Volvo SX, OMC Cobra drives
Made inItaly
Country of originItaly
Installation guide
1
Order matching steering cable
This is the helm only. Order an M66 marine steering cable separately — pick by helm-to-engine distance + engine type. Outboard, inboard, SX-drive have different engine-end fittings.
2
Mount the helm
Standard helm cutout — match the included template to your console. Bolt with the supplied hardware. Helm should be level with the wheel pointing to your normal driving position.
3
Route the cable
Route the M66 cable from helm to engine compartment. Avoid sharp bends (min. 200 mm radius). Run through bulkheads with proper grommets and seal each pass-through.
4
Connect at the engine
Engine end varies by manufacturer. Outboard: bolt to tilt tube. Inboard: clamp at steering tiller. SX: bolt to steering arm. Lubricate with marine grease before connecting.
5
Test full-lock both directions
Wheel turns lock-to-lock should be exactly 3 turns. Steering should feel smooth and self-centring. If sticky or notchy, check cable for kinks or contamination.
