Boat Boiler by ATI
Introducing the Boat Boiler by ATI – a reliable and efficient heating solution designed specifically for marine applications. This versatile boiler offers bivalent operation, enhanced insulation, and superior performance to keep your onboard water hot and ready when you need it.
- Bivalent operation with either a heat exchanger or a 1250 W electric resistance at 230 V (110 V resistance available on request for US markets)
- Advanced expanded polyurethane insulation ensures water stays hot for up to 123 hours
- Oversized heat exchanger delivers outstanding performance, outperforming double-capacity competing models

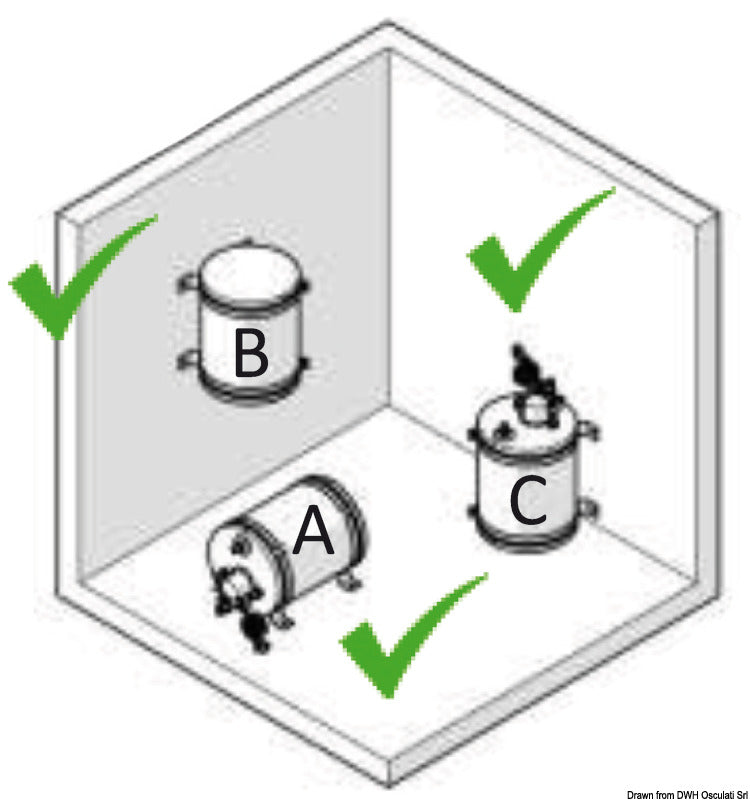

- Flexible installation options: can be mounted horizontally or vertically (Model B supports installation on three axes)
- Safety valve calibrated at 4 bar with a test pressure of 8 bar for reliable protection
- Model A: Porcelain glass boiler with aluminium external coat, cathodic protection via magnesium anode, and enameled heat exchanger
- Model B: AISI 316 stainless steel boiler with mirror-polished inox-like aluminium external coat, stainless steel heat exchanger, and front exhaust tap
Specifications
| Model | “Boat Boiler 22” |
| L | 22 |
| misure tot. With flange P mm | 485 |
| misure only boiler L2 mm | 410 |
| misure interaxis brackets L1 mm | 335 |
| Variante | Version B SS |
| Shape | cylindrical |
