Hinges 2 mm thickness
€7,95
incl. VAT 25.5%
Made in China

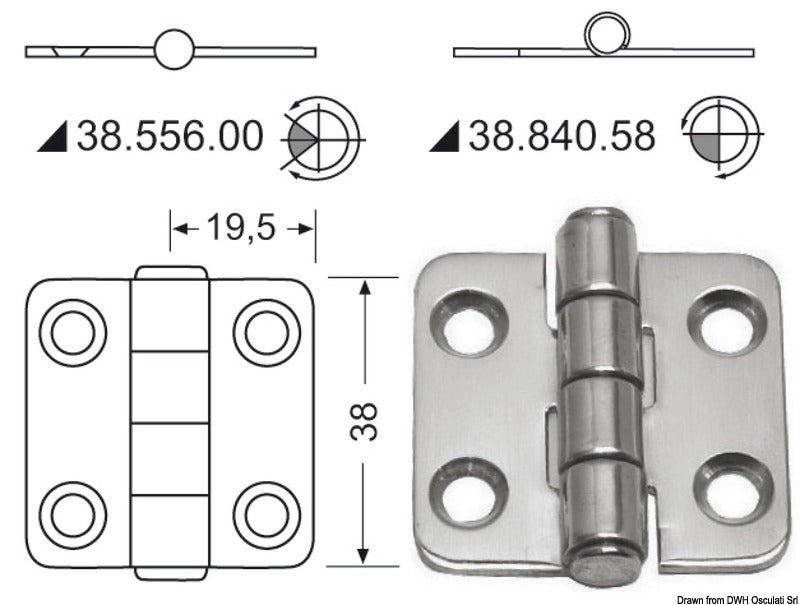

These 2 mm thick hinges are made from mirror-polished stainless steel and feature a braked central axle for vibration damping. They are sized for standard marine cabinetry and hatch applications, with detailed mounting dimensions for precise installation.
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Material | AISI 316 |
| misure mm | 38x39 |
| Model | Protruding knot |
| Overall Length | 39.5 ± 0.3 mm |
| Overall Height | 38.5 mm |
| Central Section Width | 26.5 ± 0.3 mm |
| Central Section Height | 20.5 mm |
| Hole Diameter 1 | 4 - ⌀8 mm |
| Hole Diameter 2 | 4 - ⌀5.5 mm |
| Corner Radius | R4 |
| Bottom Mounting Hole Diameter | ⌀9 +0.2/-0 mm |
| Bottom Mounting Hole Depth | ⌀5 +0.2/-0 mm |
| Bottom Mounting Angle | 90° |
| Base Height | 2 mm |
