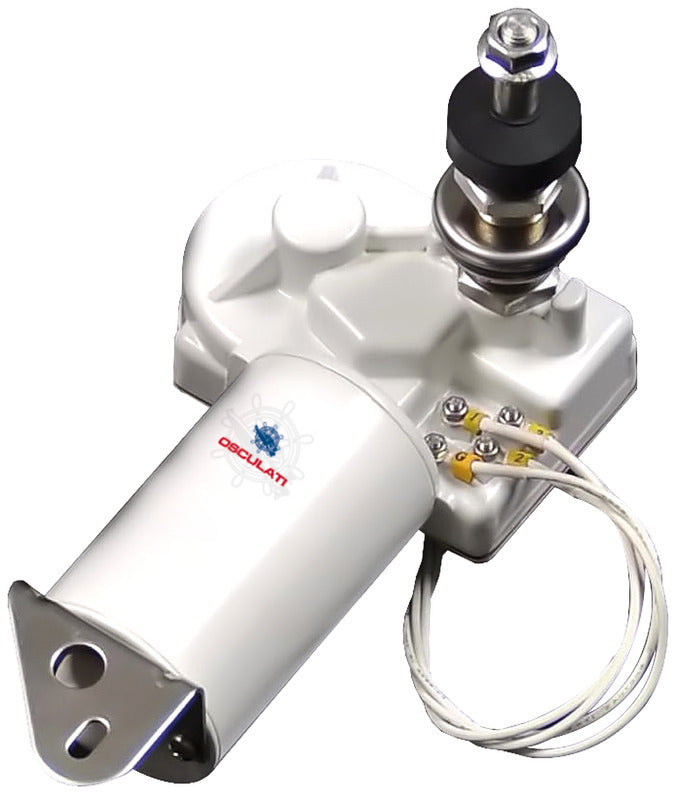

20W motor for max 550-mm wiperarms and blades
€114,95
incl. VAT 25.5%
Made in China
This 20W motor is designed to efficiently operate wiper arms and blades up to 550 mm in length with quiet operation at a maximum noise level of 55 dB. It delivers a nominal torque of 3.43 Nm with a maximum torque of 12.0 Nm, features a 48 mm fixing shaft length, and includes a DIN connector for reliable marine installation.
Select model
Motor for arms and blades 12 V 20 W
€114,95
Motor for arms and blades 24 V 20 W
€114,95
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| V | 12 |
| Rated Voltage | 12 V / 24 V |
| Test Voltage | 13.5 V / 27 V |
| Wiping Speed | 30-15~46-1.5 rpm |
| No-load Current | ≤20 A / ≤15 A / ≤1.5 A / ≤1 A |
| Working Torque | 3.43Nm (L-speed) |
| Brake Torque | >12Nm (L-speed) |
| Wire Length | 300 mm |
| Maximum Length | 195.5 mm |
| Overall Width | 162 mm |
| Overall Height | 100.5 mm |
| Output Shaft Material | Stainless steel |
| Shaft Housing Material | Brass (nickel plated) |
| Rear Bracket Material | Stainless steel |
| Motor Parking | Left |
| Parking Angle | 90° |
| Weight | Not specified |
| Model | 19 181 01 / 19 181 02 |
| Noise Level | <50dB(A) |
