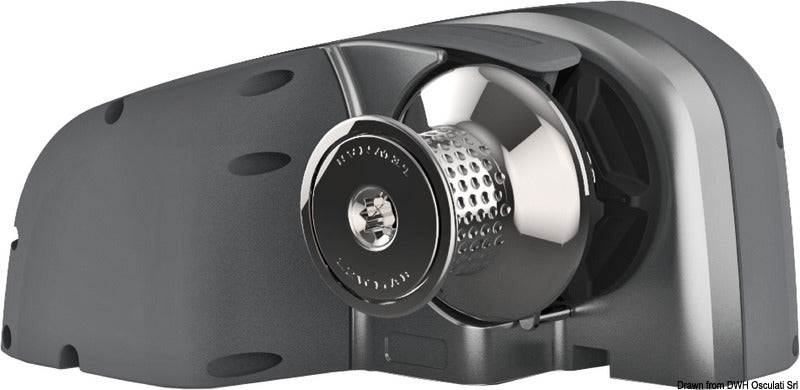

LEWMAR HX1 GO windlass kit, 500W and 800W

€1.279,00

The LEWMAR HX1 GO windlass kit combines innovative engineering with robust construction, delivering reliable anchor handling power for your vessel. Available in 500W and 800W motor options, this windlass is designed for durability and smooth performance in demanding marine environments.

New robust design featuring an in-line motor and worm wheel gearbox for enhanced reliability
Durable aluminium frame engineered to withstand years of heavy loads
Protective polymer covers for long-lasting resistance against the elements
Choice of gypsy sizes: 6/7 mm or 8 mm to suit different rope and chain types
Powerful 500W or 800W motor options for versatile performance
Waterproof unit rated IP67 for excellent protection against water ingress
Quiet operation under load ensures minimal noise during use
Optional manual 'free fall' kit available for added convenience over the sprocket

Product variants

In stock, ready to ship

Product Details

• Motor Voltage: 12 V
• Motor Power: 500 W
• Gypsy Chain Diameter: 6 mm
• Gypsy Line Diameter: 12-16 mm
• Maximum Pull Capacity: 700 kg
• Continuous Pull Capacity: 175 kg
• Maximum Line Speed: 20 m/min
• Continuous Line Speed: 5 m/min
• Current Draw: 75 A
• Recommended Circuit Breaker: 70 A
• Weight: 9.5 kg
• Optional HX1 Free Release Kit Available (Code: 02.606.99)

General

Discover the powerful and reliable 02.605.xx windlass, expertly designed for boats measuring 6 to 9 meters. Engineered to deliver superior performance, this windlass ensures smooth and efficient anchor handling with its robust motor and versatile gypsy compatibility.
