Axial fan
€22,95
incl. VAT 25.5%
Made in China

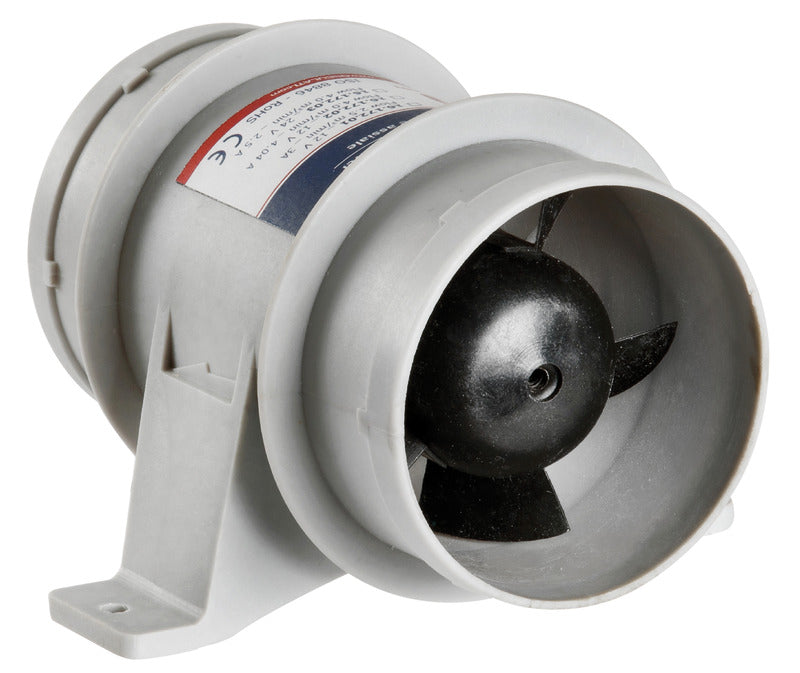

The Osculati axial fan is a 12 V electric ventilation unit with IP54 protection and Class F insulation, rated at 36 W with a maximum air volume of 248 m³/h. It is designed for continuous airflow in marine cabins and engine rooms where moisture resistance is required.
Select model
SUPERFLOW axial blower 3.8m3 12V
€22,95
SUPERFLOW axial blower 6.7m3 12V
€25,95
SUPERFLOW axial blower 6.7m3 24V
€26,95
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| V | 12 |
| Free air flow rate m³/min | 3,8 |
| Capacity in the system m³/million | 2,5 |
| Current draw A | 3 |
| Ø mouth mm | 79 |
| misure mm | 131x128x95 |
| OPTIONAL hose | [16.104.35] |
| Rated Voltage | 12 V |
| Rated Current | 3 A |
| Rated Power | 36 W |
| Motor Frequency | 50 Hz |
| Power Factor | 0.8 |
| Insulation Grade | F |
| Protection Grade | IP54 |
| Maximum Air Volume | 248 m³/h |
| Maximum Wind Pressure | 330 pa |
| Noise | 36 dp |
| Full-load Current | 4 A |
| Discharge at Full Load | 259 m³/h |
| Input Power at Full Load | 48 W |
| Cold Phase Resistance | 0.25 Ω |
| Hot Phase Resistance | 0.3 Ω |
| Full Load Stator Winding Temperature Rise | 60 K |
| Stator Core Temperature Rise | 38 K |
