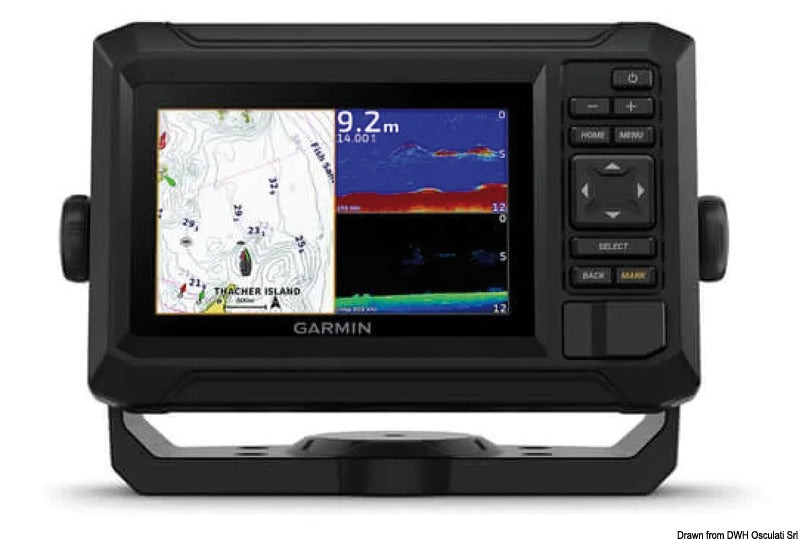

GARMIN echoMAP UHD2 chartplotter — 5" / 6" / 7" / 9" (cv or SV)
€519,00
incl. VAT 25.5%
GARMIN echoMAP UHD2 chartplotter + fishfinder — 5–9" touch display, CHIRP ClearVü (all models) or ClearVü+SideVü+Panoptix™ compatibility (SV models). Built for inshore power-boat fishing and casual cruising.
- cv models (52cv, 72cv) — entry-level, ClearVü scanning sonar, value pick
- SV models (62SV, 72SV, 92SV) — SideVü + Panoptix™ live sonar compatible, serious fishing setup
- Pick transducer: Included (drop-in install) or Without (use existing or buy specialized)
- 500W sounder module, NMEA 2000 ready, BlueChart® G3 / Navionics compatible
Sizing tip: 5" for tiny center-consoles, 6–7" the sweet spot for most boats, 9" for flybridge / dual-helm. SV vs cv: pick SV if you fish seriously (SideVü shows structure to the sides), cv if it's mostly chartplotter use.
Select model10 options
52cv (5") / Without transducer
€424,50
52cv (5") / With transducer included
€519,00
72cv (7") / Without transducer
€614,00
72cv (7") / With transducer included
€709,00
62SV (6") / Without transducer
€849,00
62SV (6") / With transducer included
€1.134,00
72SV (7") / Without transducer
€1.039,00
72SV (7") / With transducer included
€1.324,00
92SV (9") / Without transducer
€1.229,00
92SV (9") / With transducer included
€1.514,00
In stock
95 % of orders ship within 4 business days
Does this fit your boat?
Sign in and add your boat and we will show compatibility automatically. My boat →
Free shipping on orders over 100€ · Free returns within 14 days
Use cases
Inshore fishing setup
SV models (62SV, 72SV) are the right pick for serious inshore fishing — SideVü shows structure 30 m to each side of the boat, ClearVü directly below. Panoptix LiveScope upgrade later gives real-time 3D underwater video.
Coastal cruising chartplotter
cv models (52cv, 72cv) are fine for chartplotter-first use — chartplotting, NMEA 2000 instrument data, basic depth sonar. Save €200-300 vs the SV models if fishing isn't a priority.
Replacement / upgrade
Drop-in replacement for older Garmin echoMAP and most other 5"/7"/9" chartplotter cutouts. Same NMEA 2000 connector — wire to existing backbone, transfer SD card with charts, sail.
Specifications
Model52cv (5" display)
SonarCHIRP ClearVü + GT20-TM CHIRP transducer
TransducerGT20-TM included
Garmin code010-02589-01
Best forDrop-in install, small power boats
BrandGarmin
TypeChartplotter + fishfinder combo
Models52cv (5"), 62SV (6"), 72cv (7"), 72SV (7"), 92SV (9")
Sonar power500 W
CHIRP ClearVüAll models
CHIRP SideVüSV models only (62SV, 72SV, 92SV)
Panoptix™ LiveScope compatibleSV models only
NetworkingNMEA 2000
ChartsBlueChart® G3, Navionics
Touch displayYes (all models)
Made inTaiwan
Country of originTaiwan
Installation guide
1
Pick display size by helm space
5" for tight panels; 6–7" the sweet spot for most center-consoles and small cruisers; 9" for flybridge or where you want maximum chart visibility. Bigger = better but takes panel space and budget.
2
Pick cv vs SV
cv (52cv, 72cv): ClearVü scanning sonar — great for general bottom imaging. SV (62SV, 72SV, 92SV): adds SideVü (side-imaging) + Panoptix™ compatibility — pick SV if you fish seriously. SV costs €200-300 more but gives 3D-style underwater views.
3
Pick transducer option
With transducer = drop-in kit, install and go. Without transducer = you have an existing one, or you'll buy a specialized one (e.g. through-hull for larger boats, or Panoptix LiveScope for SV models).
4
Mount and wire
Flush-mount cutout or bracket mount. Power: 12V, 1.5A max. NMEA 2000 connect for chart data sharing with other instruments. Transducer mount: transom-mount for smaller boats, through-hull for larger.
5
Configure charts and networking
Insert your BlueChart G3 or Navionics SD card. Connect to NMEA 2000 backbone for VHF DSC location sharing, autopilot integration, instrument data. WiFi available for ActiveCaptain app pairing.
