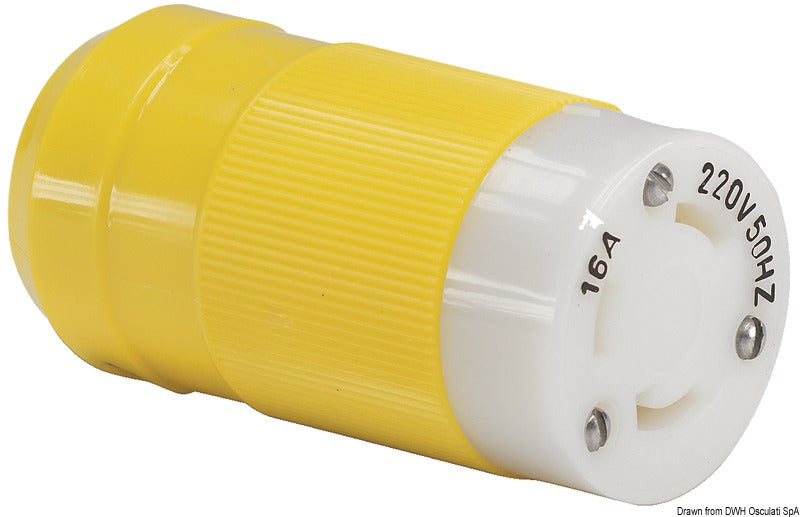

MARINCO sockets and plugs 16A at 230V
€58,95
incl. VAT 25.5%
Discover the reliability of MARINCO sockets and plugs 16A at 230V, designed specifically for marine environments where durability and waterproof performance are essential.
- Completely waterproof design ensures safe operation even in wet conditions
- Constructed from high-strength glass-fibre reinforced thermopolymer for maximum durability
- Contacts made of nickel-plated brass for superior corrosion resistance and electrical conductivity
Select model
Marinco SS female power socket 16 A
€58,95
Marinco SS male power socket 30 A
€31,90
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Description | 3-core plug to be coupled with sockets 14.301/302/303.00, female contacts. IP56 |
| Date | February, 2009 Rev: 00 |
| Catalog Number | 305CRCXN |
| Item | Connector, locking |
| Rating | 16 amperes, 230 volts, 50 Hz, single-phase, 2-pole, 3-wire |
| Materials | Plastic parts are nylon with CTI greater than 600 volts |
| Terminals | Clamp-type, with color-coded brass terminal screws, 10-32 |
| Contacts | Contacts are single-piece, rivetless, brass, 0.81 mm thick |
| Cord Clamp | Internal, with removable insert to accommodate cable with O.D. from |
| Overall Design | Three assembly screws, type B, slotted, stainless steel |
| Certifications | Conforms to IEC 60309-1:1999 when used with boot 103RN and cap/strap |
