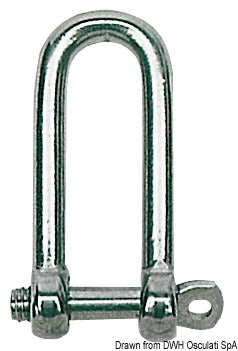

Long 'D' shackles
€14,95
incl. VAT 25.5%
Made in China
Discover the reliability and quality of our Long 'D' shackles, designed for marine and boating applications where strength and corrosion resistance are essential.
- Constructed from mirror polished AISI 316 stainless steel for superior durability
- Fine finish ensuring a sleek, professional appearance
- Equipped with a sliding thread for smooth and secure fastening
Select model
4 mm
€14,95
5 mm
€15,45
6 mm
€22,95
8 mm
€30,44
10 mm
€7,95
12 mm
€11,95
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| A mm | 4 |
| B mm | 8 |
| D mm | 8 |
| L2 mm | 32 |
| Working load kg | 148 |
| Breaking load kg | 580 |
| pcs | 10 |
| Product | Long D Shackle |
| Type | Screw Pin Forged |
| Material | Stainless Steel |
| Sizes | [{'Code': '08.323.04', 'D': '4 mm', 'A': '8 mm', 'L': '32 mm', 'Min. Breaking Load': '5.8 KN'}, {'Code': '08.323.05', 'D': '5 mm', 'A': '10 mm', 'L': '40 mm', 'Min. Breaking Load': '9.1 KN'}, {'Code': '08.323.06', 'D': '6 mm', 'A': '12 mm', 'L': '48 mm', 'Min. Breaking Load': '13.2 KN'}, {'Code': '08.323.08', 'D': '8 mm', 'A': '16 mm', 'L': '64 mm', 'Min. Breaking Load': '23.7 KN'}, {'Code': '08.323.10', 'D': '10 mm', 'A': '20 mm', 'L': '80 mm', 'Min. Breaking Load': '37.3 KN'}, {'Code': '08.323.12', 'D': '12 mm', 'A': '24 mm', 'L': '96 mm', 'Min. Breaking Load': '54.9 KN'}] |
