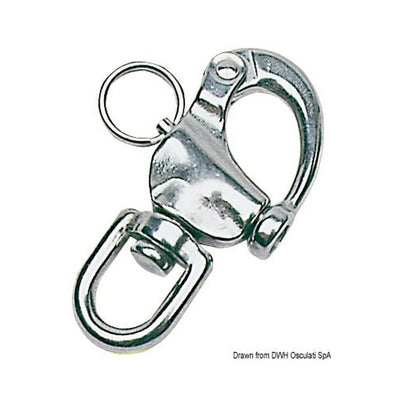

Snap-shackles for sheets, halyards and spinnakers, made of stainless steel
€20,95
incl. VAT 25.5%
Made in Thailand
Discover the reliability and durability of our Snap-Shackles for sheets, halyards, and spinnakers, crafted from premium stainless steel for superior performance on the water.
- Made from mirror polished AISI 316 stainless steel for exceptional corrosion resistance and long-lasting strength
- Equipped with a trigger opening for fast and easy release when you need it most
Select model
85 mm
€20,95
105 mm
€23,69
127 mm
€38,95
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Length mm | 85 |
| A mm | 17 |
| B mm | 11 |
| Working load kg | 300 |
| Breaking load kg | 1200 |
| Material | AISI 316/304 |
| Unit | MM |
| Item_09.855.01_Dimension_A | 83.53 mm |
| Item_09.855.01_Dimension_B | 31.42 mm |
| Item_09.855.01_Dimension_C | 9.40 mm |
| Item_09.855.01_Dimension_D | 34.00 mm |
| Item_09.855.01_Dimension_E | 18.70 mm |
| Item_09.855.01_Dimension_F | 16.29 mm |
| Item_09.855.01_Dimension_G | 14.50 mm |
| Item_09.855.01_Working_Load_Limit | 106 kgs |
| Item_09.855.02_Dimension_A | 103.48 mm |
| Item_09.855.02_Dimension_B | 38.90 mm |
| Item_09.855.02_Dimension_C | 11.50 mm |
| Item_09.855.02_Dimension_D | 41.18 mm |
| Item_09.855.02_Dimension_E | 23.40 mm |
| Item_09.855.02_Dimension_F | 19.63 mm |
| Item_09.855.02_Dimension_G | 17.66 mm |
| Item_09.855.02_Working_Load_Limit | 320 kgs |
| Item_09.855.03_Dimension_A | 125.90 mm |
| Item_09.855.03_Dimension_B | 47.50 mm |
| Item_09.855.03_Dimension_C | 14.20 mm |
| Item_09.855.03_Dimension_D | 50.80 mm |
| Item_09.855.03_Dimension_E | 28.85 mm |
| Item_09.855.03_Dimension_F | 24.42 mm |
| Item_09.855.03_Dimension_G | 21.61 mm |
| Item_09.855.03_Working_Load_Limit | 580 kgs |
| Drawing_Date | 2016/04/06 |
| Revision | 01 |
| Size | A4 |
