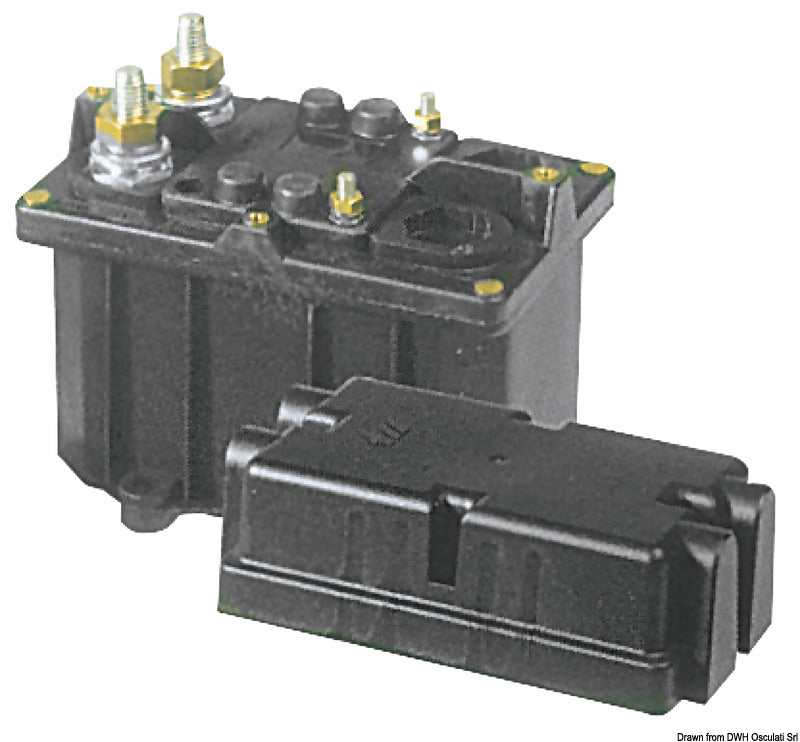

Automatic single-pole battery disconnect (main contactor with separate coil supply)
€309,50
incl. VAT 25.5%
Made in Taiwan
The Osculati automatic single-pole battery disconnect is a main contactor with a separate coil supply, rated for 250 A continuous and 2500 A short-time current at 12 V or 24 V DC. It provides automatic power cut-off when wired to the ignition circuit and can be operated via a hidden switch for anti-theft protection.
Select model
Automatic unipolar battery switch 12 V
€309,50
Automatic unipolar battery switch 24 V
€319,50
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| V | 12 |
| Model | 14.384.12-24 b |
| Nominal Voltage | 12V / 24V |
| Rated Operating Voltage | 12V / 24V |
| Max Continuous Current on Main Contacts | 250 A |
| Max Short Time Current on Main Contacts | 2500 A |
| Max Retaining Coil Current (12V) | 4.4 A |
| Max Retaining Coil Current (24V) | 3.4 A |
| Nominal Retaining Coil Current (12V) | 0.4 A |
| Nominal Retaining Coil Current (24V) | 0.3 A |
| Operating Temperature Range | -30 to +60 °C |
| IP Protection Grade | IP65 |
| Tightening Torque M10 Nuts | 20 Nm |
| Tightening Torque M5 Nuts | 1.6 Nm |
| Main Contact Ratings | 30A or 31A |
