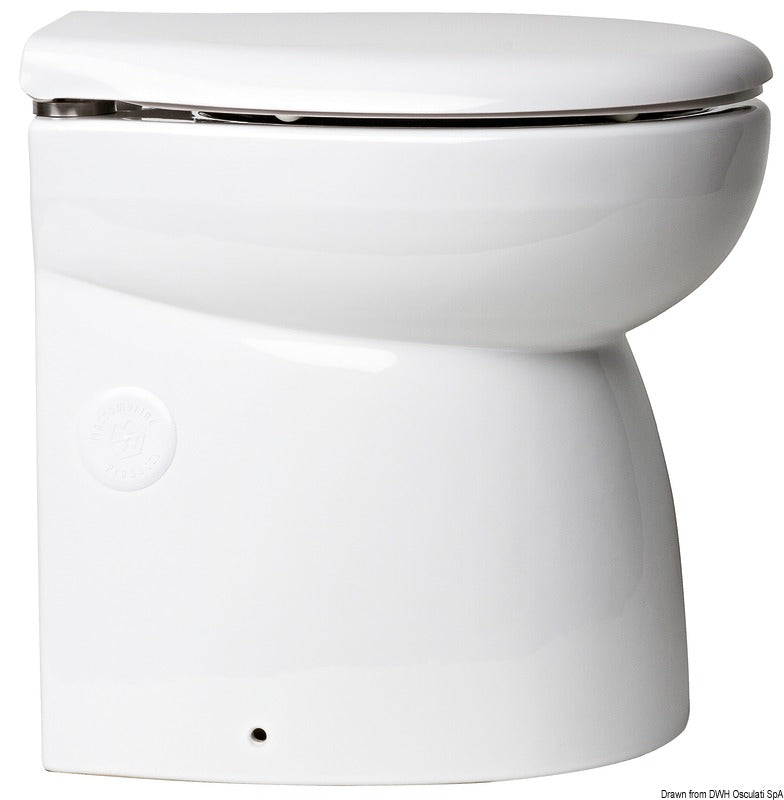

WC VACUUM BLUE WAVE Elegant high model with Silent 80 dB pump

€809,00

incl. VAT 25.5%

Introducing the WC VACUUM BLUE WAVE Elegant high model, featuring an industry-leading silent pump designed for superior performance and comfort on board.

Equipped with a SILENT pump that reduces drain noise to just 80 dB, the quietest available on the market
Includes a convenient control panel for easy operation
Spray nozzle fitting ensures fast and effective high-pressure washing of the entire toilet bowl

Select model2 options

12V

€809,00

24V

€809,00

In stock

91 % of orders ship within 3 business days

Not sure this fits your boat? Ask us before you order

Does this fit your boat?

Free shipping on orders over €100 · Free returns within 14 days

Use cases

Primary head

Electric toilet for the main head — quiet macerator, ceramic or porcelain bowl and one-touch flush make it suitable for daily use on cruising and liveaboard boats.

Charter and yacht upgrade

Replaces older manual heads on charter boats and yachts with a modern, easy-to-operate unit that reduces guest support requests.

Refit projects

Standard footprint matches most existing installations. Available in 12V and 24V to match your boat's electrical system.

Specifications

Voltage12 V

Shipping weight20.0 kg

Package volume112.5 L

BowlWhite porcelain

SeatDuroplast soft-close

PumpSILENT pump — drain noise reduced to as low as 80 dB

Suction inlet19 mm (3/4″)

Discharge outlet25 mm (1″)

CleaningHigh-pressure spray nozzle for fast and effective cleaning

Noise level≈ 80 dB (lowest in market class)

Dimensions (H×W×D)455 × 365 × 445 mm

Net weight20 kg

Made inItaly

Compatible control panelsControl panel included. Optional: 50.207.07 — Universal control panel · 50.207.09 — FLUSH switch

Optional accessoriesSea-water self-priming pump 16.525.12 · Solenoid valve 50.203.10

Country of originItaly

Installation guide

Verify voltage and circuit

Match the toilet's supply voltage (12V or 24V) to your boat's electrical system. Provide a dedicated circuit with an appropriately sized fuse and wire run from the battery.

Plan inlet and discharge plumbing

Connect the seawater inlet to a seacock with vented loop above the heeled waterline. Route the discharge hose to a holding tank or — where permitted — through a Y-valve to a thru-hull, also via a vented loop.

Position and secure the bowl

Place the toilet on a level surface, mark the four mounting holes, drill pilot holes and bolt the base down with the supplied stainless hardware. Bed each fastener in marine sealant.

Connect hoses with double clamps

Use sanitation-grade hose with two stainless hose clamps at every fitting. Avoid sags where odour-causing waste can collect.

Wire and test

Wire the control panel between battery and toilet (positive, negative, flush switch). Open the seacock, switch on the breaker, and run a complete flush cycle. Check every connection for leaks before commissioning.

Documents

Technical data sheet (Schooner)
