Fuse holder box with warning lights
€19,95
incl. VAT 25.5%
Made in Indonesia
The Osculati Fuse Holder Box with Warning Lights is a blade fuse distribution unit with a transparent PC cover, PBT housing, and integrated LED indicators per circuit, rated up to 32 VDC. It allows immediate visual detection of a blown fuse without requiring a multimeter or circuit testing.
Select model
4 housings
€19,95
6 housings
€22,95
10 housings
€21,95
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Specifications
| Fuse holders | 4 |
| LED alarm | 4 |

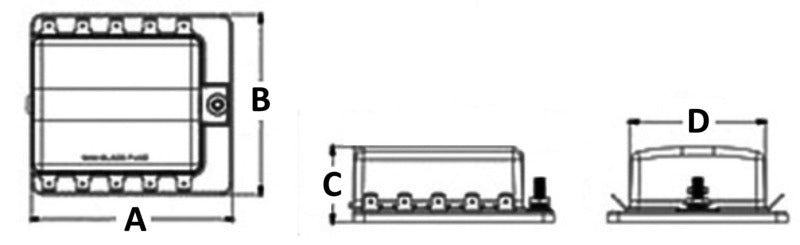

| misure mm - A | 47 |
| Voltage | 32 VDC |
| Input Terminal Rating | #10-32 threaded studs (100A max.) |
| Output Terminal Rating | 30A max. per circuit |
| Input Wire Size | #4-6 AWG |
| Output Wire Size | #12-16 AWG |
| Torque Rating | 20 in-lb (2.25 Nm) max. |
| Mounting Torque Rating | 8 in-lb (0.9 Nm) max. |
| Temperature Rating | -20°C to 85°C |
| Fuse Specifications | For Blade Fuses Used Only |
| Cover Material | PC (Transparent) |
| Housing and Base Material | PBT (Black) |
| Push Button Material | POM (White) |
| Terminal Material | Tin plating Copper |
| Dimensions Length | 85.0 ± 1.0 mm |
| Dimensions Width | 64.0 ± 1.0 mm |
| Dimensions Height | 49.0 ± 2.0 mm |
| Terminal Dimension | 6.340 ± 1.0 mm |
| Mounting Holes | 2 holes |
| Blade Fuse Dimension | 19.1 ± 0.5 mm × 14.6 ± 0.5 mm |
| Resistance per Resistor | 2.2 kΩ |
