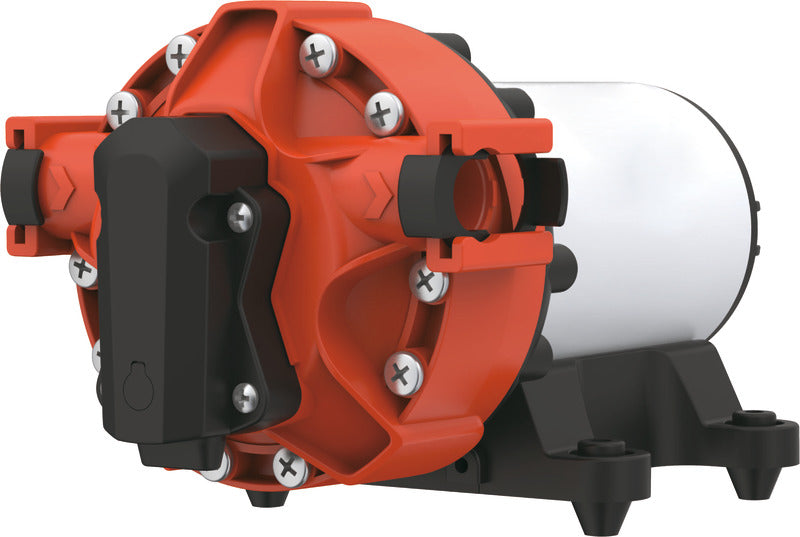

SuperFlow smart autoclave with 5 valves
€159,50
incl. VAT 25.5%
Made in China
The SuperFlow smart autoclave is a variable-speed 5-chamber diaphragm pump available in 12 V and 24 V configurations, designed to supply up to four onboard fixtures simultaneously. An integrated electronic speed controller adjusts motor output to match actual demand, eliminating flow pulsation and reducing energy consumption.
Select model
12 V
€159,50
24 V
€159,50
In stock — ships within 1–2 business days
Free shipping on orders over 100€ · Free returns within 14 days
Use cases
Multi-fixture freshwater
Supplies up to 4 onboard taps simultaneously — galley sink, shower, washroom basin and head — without flow pulsation. Ideal for cruising boats with multiple users.
Quiet liveaboard operation
Variable-speed motor runs only as hard as needed. Significantly quieter than fixed-speed pressure pumps — important when running water at night in a sleeping cabin.
Pressure pump retrofit
Drop-in replacement for older fixed-speed pressure pumps. Eliminates pulsation, reduces energy use and removes need for accumulator tank in most installations.
Specifications
| Voltage | 12 V |
| Current draw | 10 A |
| EAN | 8033137219177 |
| Shipping weight | 3.28 kg |
| Package volume | 5.8 L |
| Pump type | 5-chamber variable-speed diaphragm pump (autoclave) |
| Brand | EUROPUMP — Osculati |
| Flow rate | 18.9 l/min |
| Max pressure | 70 PSI / 4.8 bar |
| Dimensions | 226 × 128 × 142 mm |
| Net weight | 3.3 kg |
| Hose connections | 3/4″ (19 mm) straight + 90° elbow connectors · 1/2″ threaded fitting · 3/4″ filter with quick connect |
| Includes | Pump unit + all four hose connectors + inline filter with quick-connect |
| Operation | Variable-speed: electronic controller matches output to demand — no pulsation, low energy use, very quiet |
| Dry-run protection | Yes — pump can run dry without damage |
| Max fixtures supplied | Up to 4 onboard fixtures simultaneously |
| Made in | China |
Installation guide
1
Choose dry, vented location
Mount the pump in a dry, ventilated locker close to the freshwater tank to minimise suction lift. Allow access for periodic filter cleaning.
2
Select hose fittings
Use 3/4″ (19 mm) hose for inlet and outlet. The kit includes a straight connector, a 90° elbow, a 1/2″ threaded fitting and an inline filter with quick-connect — choose the combination that fits your routing.
3
Install inline filter on suction side
Always fit the included filter on the inlet (suction) side, between the tank and the pump. This protects diaphragms and valves from debris and tank sediment.
4
Wire the pump
Run a dedicated DC circuit from the battery: 12V pump (16.515.12) draws up to 10 A — fuse at 15 A; 24V pump (16.515.24) draws up to 5.5 A — fuse at 10 A. Connect through an accessible switch.
5
Prime and test
Open one fixture, then switch the pump on. The variable-speed controller adjusts automatically — no manual pressure switch tuning. Verify quiet operation, leak-tight fittings, and consistent flow at all fixtures.
